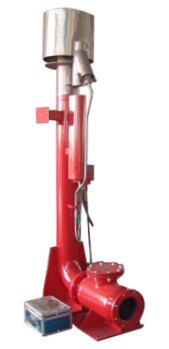

Flare Ignition Device
source：西安華揚(yáng)油氣設(shè)備有限公司 time：2017-10-25
| Model | HYYPD-20/3 | HYYPD-20/3T |
|
Nameplate Diameter of Torch |
DN200 | |
| 充電電壓 | 12V / 220V | |
| Ignition Media | Natural gas/LPG | |
| Ignition Voltage | 16kv | 16kv |
| Charge Mode | AC | Solar and AC |
| Weight | 520kg | 590kg |
| Dimensions | 1610×650×3000mm | 1610×650×3000mm |
Features and functions：
1.Can be remote-controlled ignition。
2.Switch between AC and DC ignition, In case the low battery can not ignition.
3.Fast ignition speed and high frequency。
4.The head made of stainless steel material, reasonable structure And Design for head wind-resistant shell, prevent excessive wind delays the ignition
5.Electrical components adopt imported components, and other parts and cables used domestic Well-known brands。
1.Can be remote-controlled ignition。
2.Switch between AC and DC ignition, In case the low battery can not ignition.
3.Fast ignition speed and high frequency。
4.The head made of stainless steel material, reasonable structure And Design for head wind-resistant shell, prevent excessive wind delays the ignition
5.Electrical components adopt imported components, and other parts and cables used domestic Well-known brands。
